How to Set Up ELK Stack on Ubuntu Server for Log Monitoring and Visualization

The ELK Stack is a powerful centralized logging and visualization solution used by DevOps engineers, system administrators, and SRE teams to collect, search, analyze, and visualize logs in real time.

ELK =

• Elasticsearch – Storage & search engine
• Logstash – Log processing pipeline
• Kibana – Data visualization dashboard

Server Logs → Filebeat → Logstash → Elasticsearch → Kibanayou’ll learn how to install and configure ELK Stack on Ubuntu Server from scratch, and visualize logs using Kibana.

Why Use ELK Stack?

✔ Centralized log management
✔ Real-time log analysis
✔ Powerful search & filtering
✔ Visual dashboards & alerts
✔ Widely used in production environments

ELK Stack Architecture Overview

Flow:

Server Logs → Filebeat → Logstash → Elasticsearch → Kibana

System Requirements

Component	Requirement
OS	Ubuntu 20.04 / 22.04
RAM	Minimum 4 GB
CPU	2 Core
Java	OpenJDK 17
User	sudo privileges

Step 1: Update Ubuntu Server

sudo apt update && sudo apt upgrade -y

Step 2: Install Java (Required for Elasticsearch)

sudo apt install openjdk-17-jdk -y
java -version

Step 3: Add Elastic Repository

curl -fsSL https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo gpg --dearmor -o /usr/share/keyrings/elastic.gpg

echo "deb [signed-by=/usr/share/keyrings/elastic.gpg] https://artifacts.elastic.co/packages/8.x/apt stable main" \
| sudo tee /etc/apt/sources.list.d/elastic-8.x.list

sudo apt update

Step 4: Install Elasticsearch

sudo apt install elasticsearch -y

Configure Elasticsearch

sudo nano /etc/elasticsearch/elasticsearch.yml

Modify:

network.host: 0.0.0.0
http.port: 9200
discovery.type: single-node

Start Elasticsearch:

sudo systemctl enable elasticsearch
sudo systemctl start elasticsearch

Verify:

curl http://localhost:9200

Step 5: Install Logstash

sudo apt install logstash -y

Create Logstash Pipeline

sudo nano /etc/logstash/conf.d/syslog.conf

input {
  beats {
    port => 5044
  }
}

filter {
  grok {
    match => { "message" => "%{SYSLOGBASE}" }
  }
}

output {
  elasticsearch {
    hosts => ["http://localhost:9200"]
    index => "syslog-%{+YYYY.MM.dd}"
  }
}

Start Logstash:

sudo systemctl enable logstash
sudo systemctl start logstash

Step 6: Install Kibana

sudo apt install kibana -y

Edit configuration:

sudo nano /etc/kibana/kibana.yml

server.port: 5601
server.host: "0.0.0.0"
elasticsearch.hosts: ["http://localhost:9200"]

Start Kibana:

sudo systemctl enable kibana
sudo systemctl start kibana

Access Kibana:

http://<server-ip>:5601

Step 7: Install Filebeat (Log Shipper)

sudo apt install filebeat -y

Enable system logs:

sudo filebeat modules enable system

Edit Filebeat config:

sudo nano /etc/filebeat/filebeat.yml

output.logstash:
  hosts: ["localhost:5044"]

Disable Elasticsearch output:

#output.elasticsearch:

Start Filebeat:

sudo systemctl enable filebeat
sudo systemctl start filebeat

Step 8: Verify Data Flow

Check indices:

curl http://localhost:9200/_cat/indices?v

You should see:

syslog-2026.01.31

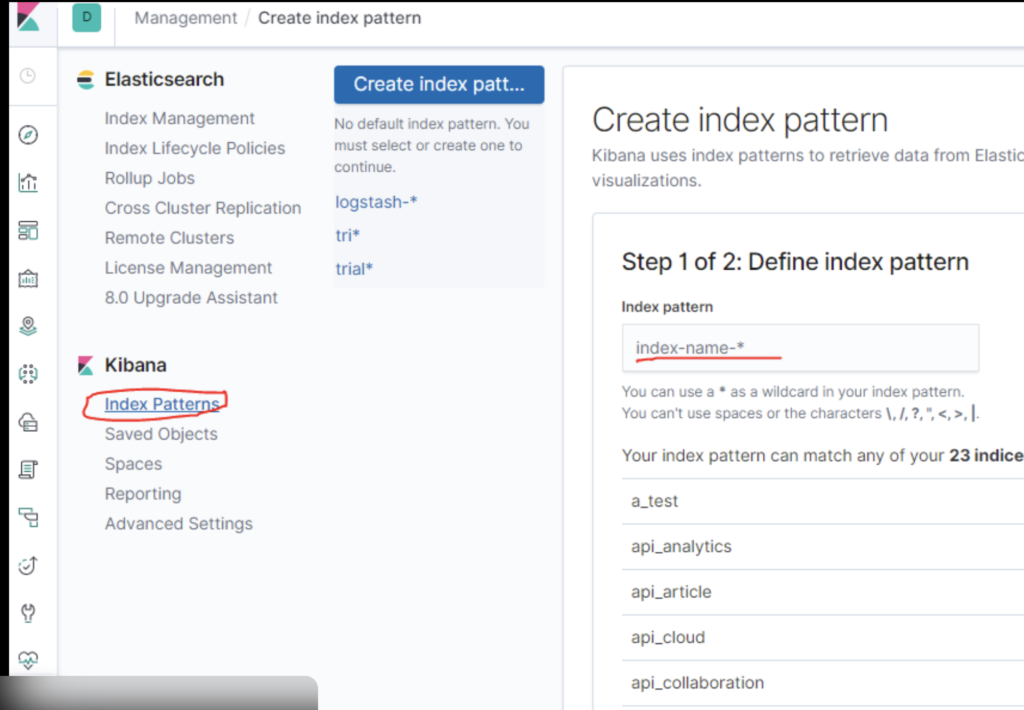

Step 9: Create Index Pattern in Kibana

Steps:

1. Open Kibana → Stack Management
2. Go to Index Patterns
3. Create index pattern: syslog-*
4. Select @timestamp

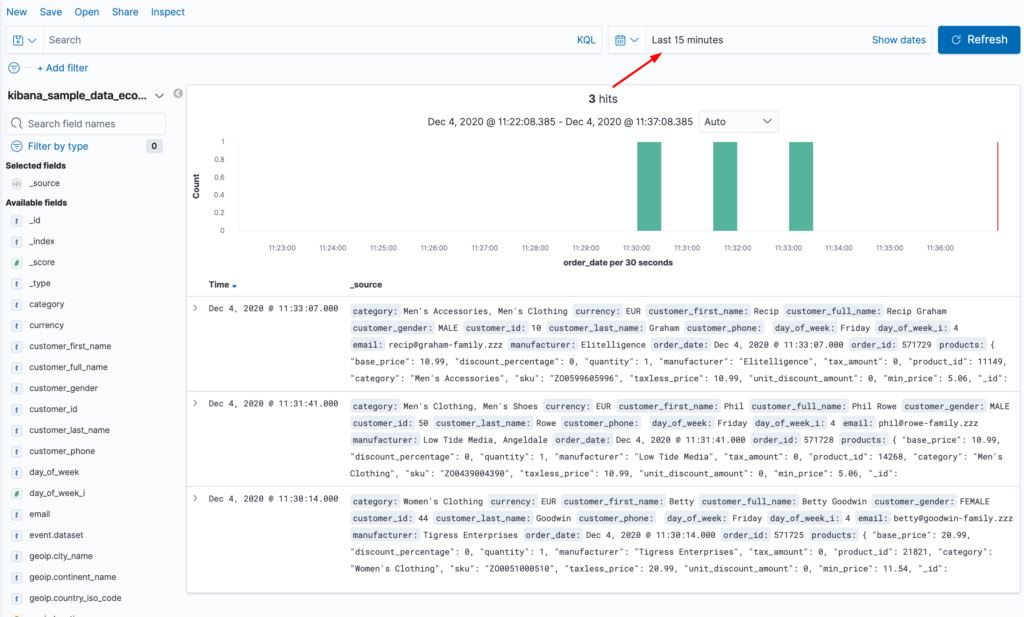

Step 10: Visualize Logs in Kibana

Common Visualizations

✔ Logs per host
✔ Error vs Info logs
✔ CPU & memory logs
✔ Authentication failures

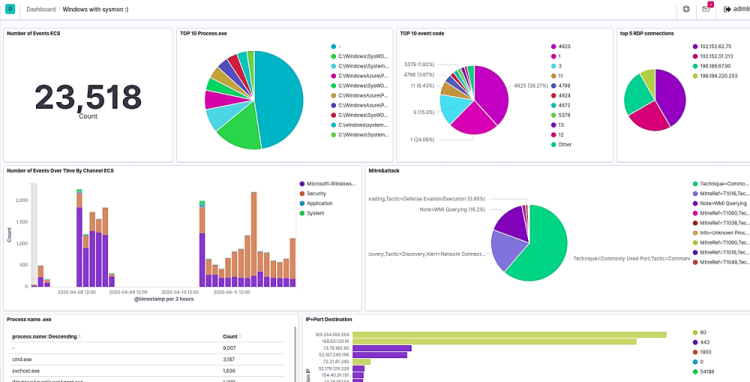

Create Dashboard

• Go to Visualize Library
• Add charts (bar, pie, line)
• Save to Dashboard

Security Best Practices (Production)

✔ Enable Elasticsearch security
✔ Use HTTPS & TLS
✔ Protect Kibana with Nginx + Basic Auth
✔ Use dedicated ELK server
✔ Enable index lifecycle management (ILM)

Common ELK Stack Issues

Issue	Fix
Kibana not loading	Check port 5601
No logs in Kibana	Check Filebeat → Logstash
High memory usage	Reduce JVM heap
Permission denied	Fix /var/log access

Conclusion

The ELK Stack on Ubuntu Server provides a robust, scalable, and production-grade logging solution.
With Elasticsearch for search, Logstash for processing, and Kibana for visualization, you gain complete observability into your systems.

This setup is ideal for:

• Linux server monitoring
• Kubernetes logs
• Application debugging
• Security analysis
